Ring Joint Gasket

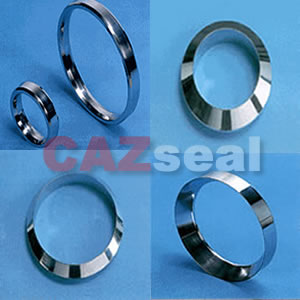

Ring Joint Gasket

Item:CAZ- RJ640
PDF:6-RJ640.pdf>

Specification:

Description:CAZ RJ640 is machined from solid metal in a variety of shapes and designed for high pressure, high temperature or highly corrosive applications by selecting the most suitable material and shape. It is designed to withstand exceptionally high assembly loads over a small area, thus producing high seating stresses.

640 PL Plain type RJG
640 OV Oval type RJG
640 OC Octagonal type RJG
640 RX RX type RJG
640 BX BX type RJG
640 S Special type RJG

MATERIALS:

Material
Code Sample
Hardness(HB)
T(¡æ)
Soft Iron
R23 SI
90
530
Carbon Steel
R23 CS
120
530
304(L)¡¢321¡¢316(L)
R23 S304
160
750
5Cr1/2Mo
R23 F5
130
500
Copper for 640PL

50
400
Aluminium for 640PL

30
300

DIMENSIONS:

Standards for Ring Joints Gaskets used with flanges
RJG Style
RJG standard
Flange standard
R
ASME B 16.20
API 6A
ANSI B 16.5
ANSI B 16.47 Series A
RX
ASME B 16.20
API 6A
API 6B
BX
API 6A
API 6BX
Can be ordered according to the detailed drawing
