Corrugated Graphite Tape

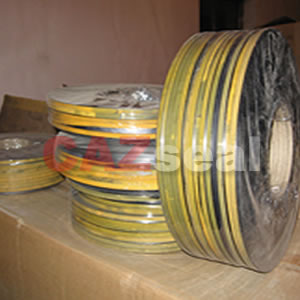

Corrugated Graphite Tape

Item:TA-440C
PDF:15-TA440.pdf>

Specification:

Description:Corrugated Graphite Tape--It cut from pure graphite roll by exact lathe, and then press it with corrugated profile by special calender. Style TA440CS is corrugated graphite tape with self-adhesive coating.With corrosion inhibitor, are also available on request.

CONSTRUCTION:

TA 440 Expanded Graphite Tape
It cut from pure graphite roll by exact lathe, normal for filler of spiral wound gaskets and die-formed graphite ring. Style TA440S with adhesive coating, it is easy to assemble.

APPLICATION:

Designed for use as packing, just with wrapping tape to stem or shaft, and then stuffing, endless packing can be formed. It¡¯s easily installed for small diameter valves, and can also be used for emergencies when spare packings are not available.
It can handle hot water, high temperature and pressure steam, heat transfer fluid, hydrogen gas, ammonia, organic solvents and so on.
Temperature:   -240~500¡ãC under oxidizing environment
                          -240~3500¡ãC under non-oxidizing environment
PH Range:        0 - 14

PARAMETER:

Item
Nuclear
grade
Industrial grade
Tolerance of Density   g/cm3
¡À0.05
¡À0.06
Carbon Content       ¡Ý%
99.5
98/99
Tensile strength       ¡ÝMpa
5
4
Compressibility       ¡Ý%
30
30
Recovery             ¡Ý%
15
15
Sulphur Content       ¡Ü%
700
1200
Chlorine Content      ¡Ü%
25
50
Stress relaxation rate  %
10
10
Lgnition loss          ¡Ü%
0.5
2.0
15-TA440.pdf
