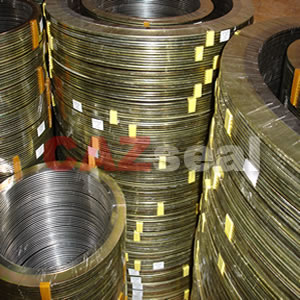

Inner and outer Ring of SWG

Inner and outer Ring of SWG

Item:CAZ- 640PL
PDF:7-640PL.pdf>

Specification:

Description:CAZ 640PL also can be processed for inner and outer ring of spiral wound gasket. We make the inner and outer ring by punched for size small then 14 inch, and by lathe for large sizes. If some material is costly, for example SS304, SS316 etc., we can make it by bending and welding with low cost, if the seal face is narrow.

CONSTRUCTION:

CAZ 640PL is machined from solid metal sheet in a round shapes and designed for high pressure, high temperature or highly corrosive applications by selecting the most suitable material. It is designed to withstand exceptionally high assembly loads over a small area.

CAZ 640PL also can be processed for inner and outer ring of spiral wound gasket.
CAZ have enough homemade special groover and angling machines for making inner and outer rings of SWG with good efficiency and lower cost.

AVAILABLE:

Size:
ASME B 16.20
1/2Ħħ to 24Ħħ
150LB, 300LB, 600LB
Other Sizes or standard on request
Materials:
Carbon Steel, with or without zinc coating
SS304, SS304L, SS316, SS316L
Other special materials:
SS321, SS317L, Duplex 31803,
Ti, Ni, Inc, Hast. Monel, Zr. etc

ORDERING EXAMPLE:

Inner and outer ring , Material: SS304
2Ħħ 150LB
