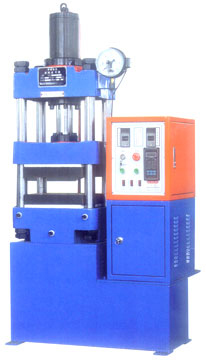

YJ Series Hydraulic Shaper

YJ Series Hydraulic Shaper

Item:YJ-PC
PDF:no !pfd

Specification:

Description:YJ-PC Computerized Control type Hydraulic Shaper for making rubber gasket,PTFE gasket and die-formed graphite ring etc.

YJ-PC Computerized Control type
   YJ Series Hydraulic Shaper is suitable for thermosetting plastics (bakelite),rubber,
glass fibre, magnetic material, powder metallurgy and graphite washer etc. and cool load
and unload as well as other lines.
   Three kinds controls are available: manual, button and computer control.
YJ-PC Computerized Control type
The operators technique will not affect the quality of product produced by this machine.
It suits for rubber articles, thermosetting plastics(bakelite etc as well as special
products which have complicated process date (such as exhaust or many times air exhaust
and midway exhaust ) and need high quality.
Features:
¡ù Data setting: Original pressure stop, Air exhaust stop, Sulfide 1.Suflide 2,Original
  pressure exhaust and Midway exhaust.
¡ù With manual and auto control functions.
¡ù Computer internal lock with power OFF memory.
¡ù

Temperature control precision:¡Ü¡À2¡æ

¡ù Two choices for pressure guage and pressure relay
 Model

YJ-100
YJ-150

YJ-350

YJ-400

YJ-450

YJ-500

YJ-630

YJ-800

YJ-1000I

YJ-1000II

YJ-1500

 Max.pressing force(KN)

100
150
350
400
450
500
630
800
1000
1000
1500
 Operate table size(mm)
220¡Á330
300¡Á380
280¡Á280
400¡Á400
320¡Á320
400¡Á400
450¡Á450
500¡Á500
500¡Á500
600¡Á600
600¡Á600
 Work table dimension(mm)
160
200
200
200
200
250
300
300
300
400
 Min.opening height(mm)
140
close
80
close
80
110
120
130
130
keding
 Motor power(kw)
1.5
1.5
1.5
1.5
2.2
4
4
4
5.5
5.5
Notel Abote data are subject to change without notice.
