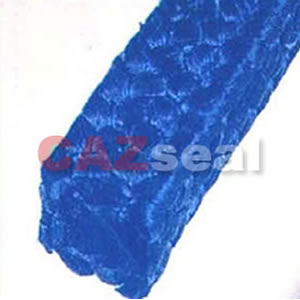

Carbonized Fiber Packing with Graphite

Carbonized Fiber Packing with Graphite

Item:CAZ-242G
PDF:17-CAZ-242 Carbonized Fiber.pdf>

Specification:

Description:Carbonized PAN fiber impregnated with PTFE dispersion containing graphite particles, PTFE and graphite makes the packing have excellent self lubrication.

CONSTRUCTION:

CAZ 262EG Carbonized Fiber Packing Reinforced with Nickel wire
The wire reinforcement provides increased mechanical strength, usually for static.

APPLICATION:

It can be used in weak acids and alkalis or media containing few grains of solid particles, both dynamic and static, mainly used for centrifugal pumps, plunger pumps, mixers and valves.
Without cooling it can be used with hot water up to 160ˇăC , with cooling it can be used with hot water up to 207ˇăC. Particularly ideal for hot water, condensate and main coolant pumps.

PARAMETER:

Temperature
-50~+280 ˇăC
Pressure-Shaft
Rotating
20 bar-25m/s
Reciprocating
100 bar-2m/s
Valve
200 bar-2m/s
PH Range
2~12
Density(appr.)
1.1~1.3g/cm3
PACKAGING:
in coils of 5 or 10 kg, other package on request.
as packing rings----R242G
as precut length



Other items in : Packing Carbon Fiber Packing

» Carbon Fiber Paking
» Carbonized Fiber Packing
