Description:Square braided from ceramic fiber impregnated with graphite. Normal for valves and static seal under supper high temperature.
Ceramic fiber is standout among the different organic and inorganic fibers as ideal replacement of asbestos. All of CAZ ceramic products are made of good quality ceramic fiber, it has many excellent capabilities of high temperature resistance, low density and low thermal conductivity, better insulation and incombustible etc.
CAZ 214 Ceramic fiber packing

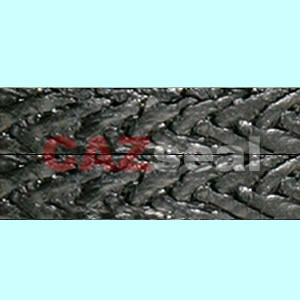

Braided from ceramic fibers without any impregnation, will not shrink or swell in service. It can be reinforced by fiberglass or SS wire, May be ordered square or round cross section.
CAZ 214EG Graphited Ceramic packing with Nickel wire
212EG is ceramic packing reinforced with Inconel or SS or Nickel wire and lubricated by graphite.
APPLICATION:
As a static seal for vessels, heaters, manhole, lids, covers, thermal insulation and fire-proof of pipes etc under high temperature. Suited for chemically neutral and resistant to water, steam, hot air, oils and so on.
PARAMETER:
Temperature : 850ˇăC (with fibreglass)
1050 ˇăC(with wire)
PH range: 5~9
PACKAGING:
In coils of 5 or 10 kg,
other weight on request
214 by weaving sock, 214G & 214EG by CTN
More CAZ cermic fiber products, please contact ˇ°Cixi Caztex Insulation Company Limitedˇ±.
See to www.caztex.net
|
