Oil-resisting Non-asbestos Sheet

Oil-resisting Non-asbestos Sheet

Item:CAZ- ONCAF 432/433/434RO
PDF:2-434RO NCAF.pdf>

Specification:

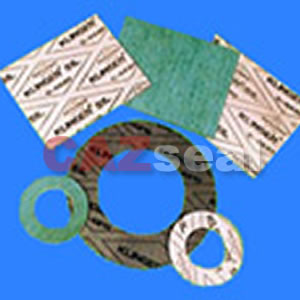

Description:CAZ ONCAF oil-resisting non-asbestos sheet is made from Kevla fibre, synthetic rubber, filling material and dye, compressed and calendered under high temperature and pressure into a sheet form. It eliminates asbestos-rubber sheet essentially and thoroughly.

PARAMETER:

Item
Style
 432RO
 433RO
 434RO
Density
g/cm3
1.8~2.0
1.8~2.0
1.8~2.0
Tensile strength ¡ÝMpa
6
9
12.5
Compressibility
¡Ý%
12¡À5
12¡À5
12¡À5
Recovery
¡Ý%
40
45
45
Aging
coefficient
0.9
0.9
0.9
Stress relaxation ¡Ü%
45
45
45
Steam Sealing
Tmax: 200¡æ
Pmax: 2~3Mpa
30min
no shock
Tmax: 300¡æ
Pmax: 4~5Mpa
30min
no shock
Tmax: 400¡æ
Pmax: 8~9Mpa
30min
no shock
Tmax:  ¡æ
200
300
400
Pmax:  Mpa
1.5
3.0
5.0
Resistance
to media
Oil fuel, gases, salt solutions and many other media.

Normal colour: Black with some white, Blue or Green-white etc.
Available with tin steel, copper, SS304 etc. wire mesh insertion (43*ROM)
Also available with anti-stick£¨43*ROS£©or graphite coating (43*ROG)
With your logo on request.

DIMENSIONS:

Thickness:  0.4~5mm
2000¡Á1500mm; 1500¡Á4000mm;1500¡Á1500mm;
1500¡Á1000mm;1270¡Á1270mm; 3810¡Á1270mm
