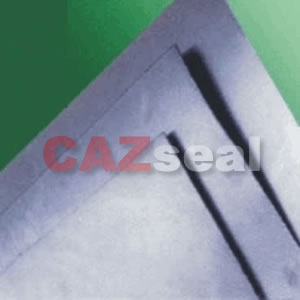

Description:440P is made of expanded flexible graphite 440, reinforced by a smooth stainless steel-carrier of 1.4301 (304) or 1.4401 (316), Nickel, 0.05mm thick, graphite content of more then 98 %, graphite bulk density 1.0 g/cm3. Normal Style: 440P/304, 440P/316,440P/Other metal foil material
APPLICATION:
Made for various gaskets.
Suitable for Petrochemical, Mining, Vessels, Boilers, Piping and Duct, Pumps and Valves, Flanges,
PARAMETER:
Temperature: -200 up to 550ˇăC
Pressure: up to 400 bar
PH Range: 0 - 14
BENEFIT:
Permanently elastic, even in hot-cold cycles over the entire temperature range, no aging, no brittleness, no hot or cold flow, long time uniform compressibility and resiliency independent of temperature.
MEDIA:
Steam, mineral oils, heat transfer oils, hydraulic oil, fuel, water, seawater, freshwater etc.
DIMENSION:
1000 x 1000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm
1000 x 2000 x 1.0 ; 1.5 ; 2.0 ; 3.0mm
1500 x 1500 x1.0 ; 1.5 ; 2.0 ; 3.0mm
1500 x 2000 x1.0 ; 1.5 ; 2.0 ; 3.0mm
|
