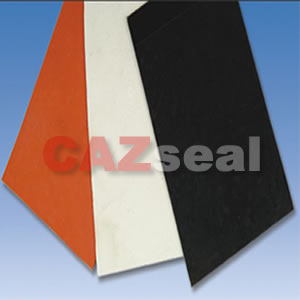

Rubber Sheet

Rubber Sheet

Item:CAZ-460
PDF:11-460 Rubber.pdf>

Specification:

Description:CAZ Elastop Rubber sheets are manufactured for your different requirements such as oil-resisting, acid and alkali-resisting, cold and heat-resisting, insulation, anti-seismic etc. They can cut into various gaskets, used in chemicals, elections, fire-resisting and food. They also can be used as sealer, buffer rubber ring, rubber mat, sealing strip and for the decoration of flights of step and ground of hotel, port boats and ships, vehicles etc.

Main Specification:

Style
Products
Color
g/cm3
Hardness  sh
Elongation %
Tensile strength
Temp ¡æ
460BR
Black rubber sheet
Black
1.6
70¡À5
250
3.0Mpa
£­5~£«50
460RC
Black rubber sheet with cloth insert
Black
1.6
70¡À5
220
4.0Mpa
£­5~£«50
460NBR
Nitrile rubber sheet
Black
1.5
65¡À5
280
5.0Mpa
£­10~£«90
460SBR
Styrene-butadiene rubber sheet
Black/red
1.5
65¡À5
300
4.5Mpa
£­10~£«90
460CR
Neoprene rubber sheet
Black
1.5
60¡À5
300
4.5Mpa
£­10~£«90
460EPDM
Ethylene propylenediene rubber sheet
Black
1.4
65¡À5
300
8.0Mpa
£­20~   £«120
460SC
Silicone rubber sheet
White
1.2
50¡À5
400
8.0Mpa
£­30~   £«180
460VITON
Fluorine rubber sheet
Black
2.0
70¡À5
350
8.0Mpa
£­50~   £«250
460RO
Oil-resisting rubber sheet
Black
1.5
65¡À5
280
5.0Mpa
£­10~£«60
460RCH
Cold & heat-resisting rubber sheet
Black
1.6
65¡À5
280
4.5Mpa
£­20~   £«120
460RAA
Acid & alkali-resisting rubber sheet
Black
1.6
65¡À5
280
4.5Mpa
£­10~£«80
460RI
Insulating rubber sheet
Black
1.5
65¡À5
300
5.0Mpa
£­10~£«80
460RFI
Fire-resistance rubber sheet
Black
1.7
65¡À5
280
4.5Mpa
£­5~£«60
460FR
Food grade rubber sheet
Red/white
1.6
60¡À5
300
6.0Mpa
£­5~£«50

Width: 1000mm£¬1200mm£¬1500mm£¬2000mm£¬Length on request£¬
Normal: 50kg/roll£¬Thickness£º1~60mm£»
Each rubber sheet can be reinforced with fabric cloth£¬thickness¡Ý1.5mm£»
More other rubber products see to http:www//elastop.com
