Description:It is made from synthetic emulsion, asbestos fiber and filling material. Normal used for automobile, agricultural machinery, motorcycle, engineering machinery etc., suitable for lubricating oil under temperature 200¡æ
CONSTRUCTION:

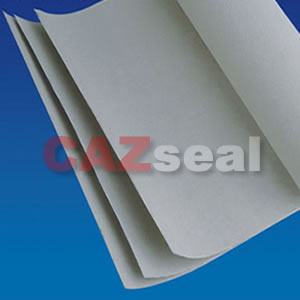

CAZ 400V Vulcanized Asbestos beat sheet
It has smooth face and high density compared with Style 400
APPLICATION & PARAMETER:
Gasket materials for explosion engine cylinder gaskets and chemical gaskets
Suitable to sealing lubricating oil at highest temperature 200¡æ 400 Asb strip is normal for filler of spiral wound gasket.
|
Item |
Style |
|
400 |
400V |
|
Density g/cm3 |
0.9~1.1 |
1.2~1.4 |
|
Tensile strength ¡ÝMpa |
2.5 |
5 |
|
Compressibility ¡Ý% |
40¡À7 |
20¡À5 |
|
Recovery ¡Ý% |
20 |
40 |
|
Stress relaxation ¡Ü% |
30 |
30 |
|
In 20# aviation oil,
150¡æ, 30min |
Oil absorption |
¡Ü50% |
¡Ü30% |
|
Thick. increase |
¡Ü6% |
¡Ü12% |
|
In water
15~30¡æ, 5h |
Thick. increase |
¡Ü6% |
¡Ü12% |
Normal color: Grey, Black, White, other color on request
Also available with anti-stick : 400S, 400VS
or graphite coating : 400G, 400VG
TOLERANCE:
|
Item |
Tolerance |
In same sheet |
|
Thickness |
¡Àmm |
mm |
|
0.5 |
0.05 |
0.06 |
|
0.6-0.8 |
0.06 |
0.08 |
|
1-2 |
0.08 |
0.08 |
DIMENSIONS:
Width: 500mm; 1000mm
Length: 500mm; 1000mm; 1200; 1500mm
Thickness: 0.3~2.0mm
|
