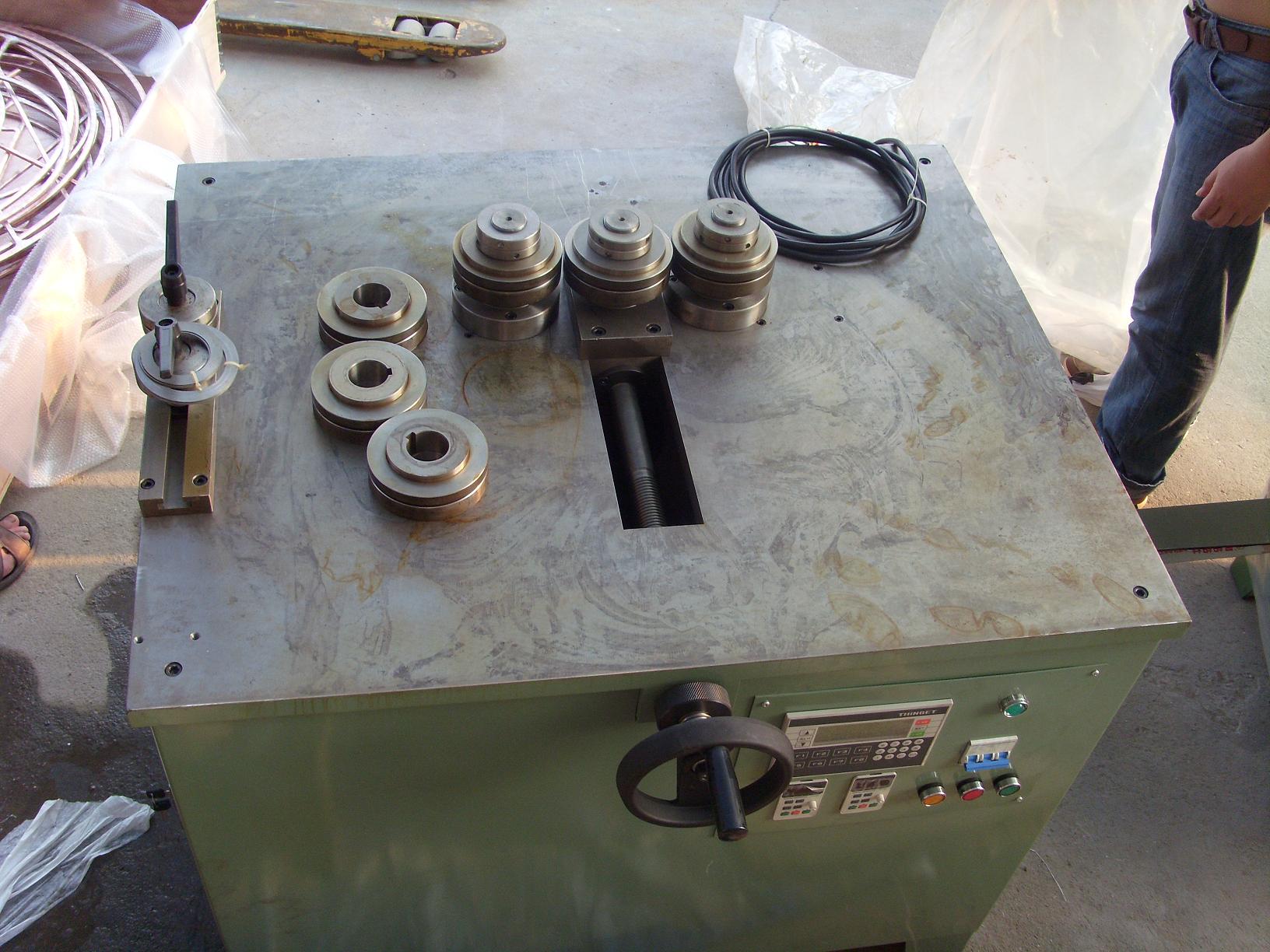

Metal Ring Bender-New style

Metal Ring Bender-New style

Item:CAZ 820RB--New
PDF:2-Machines for SWG.pdf



>

Specification:

Description:Bend metal strip into inner or outer ring of SWG, No longer expensive lathes need; Utilizing adequately metal material,, no waste; No problem for large sizes

New style, with 3 pcs of motor and 2pcs of transducer, the speed can be adjusted.It is more better than old style
1.      Power:380AV, 50HZ, 2.8 KW;
2.      L¡ÁW¡ÁH=1¡Á0.9¡Á0.9m;
3.      N.W.: appr.350kgs
4.      Line Speed: 50mm/s
5.      Work range: ID 150~4000mm
         Thick. 2~5mm
         Width of ring: 5~50mm
