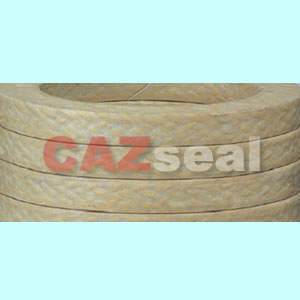

Description:Braided from high quality Aramid fiber with PTFE Impregnation and lubricant additive. Extremely hard wearing. It shows good chemical resistance, high elasticity and very low cold flow. It is wear resistant but may damage the shaft if not used properly. A minimum shaft hardness of 60HRC is therefore recommended. Compared with other kinds of packing, it can resist more severe media and higher pressure. The packing is also lubricated with a silicone-based compound for quick and easy break-in.
CAZ-260L Aramid fiber packing with an inert lubricant
Without PTFE impregnation, An extremely durable, highly abrasive resistant packing, It is ideal for slurry service application.
APPLICATION:
It is a universal packing which can be used for pumps in all types of industry such as chemical, petrochemical, pharmaceutical, food and sugar industries, pulp and paper mills, power stations etc. It is also a durable packing able to withstand granular and abrasive applications, it is recommended for serve in superheated steam, solvents, liquefied gases, sugar syrups and other abrasive fluids.
For hot water applications it can be used un-cooled up to 160¡ãC.
It can be used as stand-alone packing also combined with others as anti-extrusion ring.
PARAMETER:
|
|
Rotating |
Reciprocating |
Static |
|
Pressure |
25 bar |
100 bar |
200 bar |
|
Shaft speed |
25 m/s |
1.5 m/s |
|
|
Temperature |
£100~+280¡ãC |
|
PH range |
2~12 |
|
Density |
Appr. 1.4g/cm3 |
PACKAGING:
in coils 5 or 10kg, other package on request.
as packing rings----R260, R260L
as precut lengt
|
