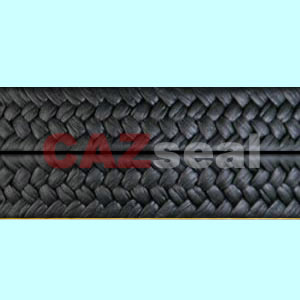

Description:Braided from graphited PTFE (gPTFE) plain yarn. The packing is soft, with low density There are no free particles of graphite on surface and therefore no contamination can occur.
CONSTRUCTION:
CAZ-254 A is a packing with A grade of quality, the yarn with good tensile strength, and excellent thermal conductivity.
CAZ-254 B is economical gPTFE packing, braided from normal graphite PTFE yarn
APPLICATION:
For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.
PARAMETER:
|
Style |
254A |
254B |
|
Pressure |
Rotating |
20 bar |
15 bar |
|
Reciprocating |
100 bar |
100 bar |
|
Static |
150 bar |
200 bar |
|
Shaft speed |
16 m/s |
12 m/s |
|
Density |
1.4~1.6g/cm3 |
|
Temperature |
£150~+280¡ãC |
|
PH range |
0~14 |
DIMENSIONS:
in coils of 5 to 10 kg, other weight on request;
as precut length; as prepressed rings----R254 A/B
|
