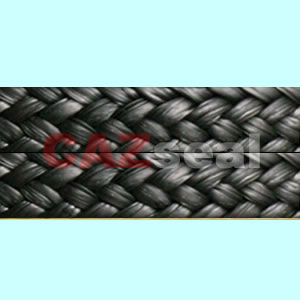

Graphited PTFE Packing wiht oil

Graphited PTFE Packing wiht oil

Item:CAZ-254L
PDF:4-254,254L gPTFE.pdf>

Specification:

Description:Packing made of 100% gPTFE yarns, and re-impregnated with a silicone lubricant with density about 1.6g/cm3. It is also economical gPTFE packing.

APPLICATION:

For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.

PARAMETER:

Pressure
Rotating
15 bar
Reciprocating
100 bar
Static
200 bar
Shaft speed
12 m/s
Density
1.65g/cm3
Temperature
£­150~+280¡ãC
PH range
0~14

DIMENSIONS:

in coils of 5 to 10 kg, other weight on request;
as precut length;  as prepressed rings---- R254L



Other items in : Packing Graphited PTFE packing

» gPTFE Filament Packing
» Graphited PTFE Packing
