Description:CAZ CAF are made from selected asbestos fibre, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields.
PARAMETER:
|
Item |
Style |
|
412 |
413 |
414 |
414-2 |
|
Tensile strength¡ÝMpa |
9 |
12 |
15 |
19 |
|
Aging
coefficient |
0.9 |
0.9 |
0.9 |
0.9 |
|
Loss on ignition
¡Ü% |
30 |
30 |
28 |
28 |
|
Compressibility
¡Ý% |
12¡À5 |
12¡À5 |
12¡À5 |
12¡À5 |
|
Recovery
¡Ý% |
40 |
40 |
45 |
45 |
|
Density g/cm3 |
1.6~2.0 |
|
Tmax: 0C |
200 |
300 |
400 |
450 |
|
Pmax: Mpa |
2.3 |
3.5 |
5.0 |
6.0 |
|
Resistance
to media |
Water, seawater, steam, diluted acid & alkali, gases, alcohols, salt solutions etc. under temperature and pressure. |
Lower Grade on request

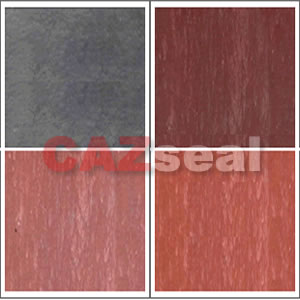

Available color: Purple, red, black, grey etc.
Available with tin steel, copper, SS304 etc. wire mesh insertion (41*M)
Also available with anti-stick£¨41*S£©or graphite coating (41*G)
With your logo on request
DIMENSION:
4000¡Á1500mm; 2000¡Á1500mm;1500¡Á1500mm;
1500¡Á1000mm;1270¡Á1270mm; 3810¡Á1270mm;
3810¡Á2700mm
Thickness: 0.5~6mm
|
