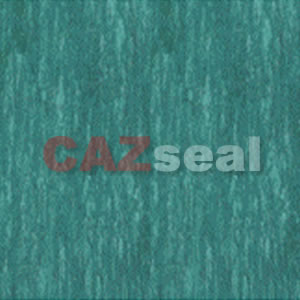

Description:CAZ Acid-resisting ACAF is made of good asbestos fiber with acid-resisting synthetic rubber compression heating and compression molding it.
APPLICATION:
Mainly used for the equipment in acid, and used as sealing materials of gaskets for the flange of pipeline joints.
PARAMETER:
|
Item Style
|
414AC |
413AC |
412AC |
|
Horizontal Strain ¡ÝÀ±MPa |
14 |
11 |
8 |
|
Weight-increasing |
96.17%( H2SO4) =18mol/L*48h |
¡Ü30% |
¡Ü30% |
¡Ü30% |
|
36.97%(HCL)=12mol/L*48h |
¡Ü25% |
¡Ü25% |
¡Ü25% |
|
10% (HNO3)= 1.67mol/L*48h |
¡Ü20% |
¡Ü20% |
¡Ü20% |
|
Max. Pressure Mpa |
4.0 |
3.0 |
2.0 |
|
Max. Temperature ¡æ |
400 |
300 |
200 |
|
Strain-decreasing %¡Ü |
50 |
|
Aging Coefficient |
0.9 |
|
Softness |
No Crack |
|
Density g/cm 2 |
1.8-2.0 |
|
Burning Loss % |
30 |
|
Compressibility |
12¡À5 |
|
Elasticity¡Ý% |
40 |
Available colour: Green, blue, white etc.
Available with tin steel, SS304 etc. wire mesh insertion (Style: 41*ACM)
Also available with anti-stick (Style:41*ACS) or graphite coating (Style: 41*ACG)
With your logo on request
DIMENSION:
1500¡Á4000mm, 1500¡Á2000mm
1500¡Á1350mm, 1500¡Á1000mm
1270¡Á3810mm, 1270¡Á1270mm
Thickness: 0.4~6mm
|
