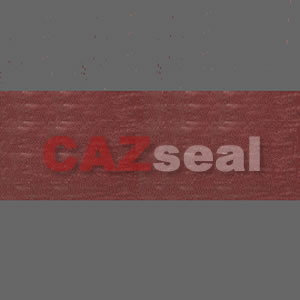

Asbestos Sheet with Wire Mesh

Asbestos Sheet with Wire Mesh

Item:CAZ-CAF 415,415G,415MG
PDF:17-415MG ASB.pdf>

Specification:

Description:CAZ CAF415 is made from selected asbestos fiber, natural rubber, filling material and dye. A price worthy quality of dependable performance, plus adaptability to many sealing requirements makes this jointing the most economical sheet packing choice in the wide range of industrial fields. CAZ 415G is CAF 3050 with both graphite coating CAZ 415MG is CAF 3050 reinforced by wire mesh with both graphite coating

PARAMETER:

Item
Style
415
415G
415MG
Tensile strength¡ÝMpa
19
19
25
Aging
coefficient
0.9
0.9
0.9
Loss on ignition
¡Ü%
28
28
28
Compressibility
¡Ý%
12¡À5
12¡À5
12¡À5
Recovery
¡Ý%
45
45
45
Density g/cm3
1.8~2.0
1.8~2.0
2.0~2.2
Tmax:  ¡æ
500
550
550
Pmax:  Mpa
12.0
12.0
20
Normal color
Purple red
Graphite
Graphite
Resistance
to media
Water, seawater, steam, diluted acid & alkali, gases, alcohols, salt solutions etc. under temperature and pressure.

Also available with anti-stick£º415S£¬415GS£¬415MGS

DIMENSION:

Thickness:  0.4~6mm
2000¡Á1500mm;  1500¡Á4000mm;
1500¡Á1500mm;  1500¡Á1000mm;
1270¡Á1270mm;  3810¡Á1270mm
New:  3810¡Á2700mm
