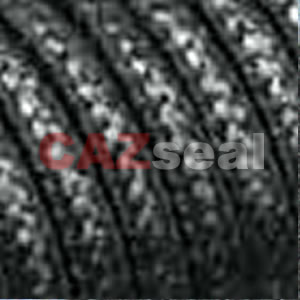

Description:Diagonally braided from expanded flexible graphite, reinforced at the corners throughout with high quality carbon fiber. This corners and body make it three times more resistant to extrusion and also increase the pressure handing capabilities compared to 240.
APPLICATIONG:
Can be used in many demanding applications, both dynamic and static. Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant etc.
PARAMETER:
|
Temperature |
-200~+550¡ãC |
|
Pressure-Speed |
Rotating |
25bar-20m/s |
|
Reciprocating |
100bar-20m/s |
|
Valve |
300 bar-20m/s |
|
PH range |
0~14 |
|
Density |
1.3~1.5g/cm3 |
PACKAGING:
in coils of 5 or 10 kg, other package on request.
as packing rings--- RC240£»
as precut length
|
