High-temp Jacketed Graphite Packing

High-temp Jacketed Graphite Packing

Item:CAZ-C240E
PDF:15-240M,C240E Graphite.pdf

>

Specification:

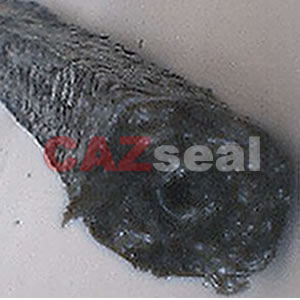

Description:High temperature fiber with inconel wire braided over a resilient graphite core thoroughly impregnated with graphite and corrosion inhibitor, normal for steam valve. Similar to Chemstar 1414

CONSTRUCTION:

240ES Reinforced Graphite Packing with SS Spring core
It is 240E Inconel reinforced graphite packing with stainless steel spring core, special for oval stem under high temperature.

PARAMETER:

Style
240ES
C240E
Pressure
50Bar
140Bar
Speed
2m/s
2m/s
PH
0~14
3~10
Density
1.1~1.4g/cm3
Temperature
-220~+550ˇăC (+650ˇăC steam)

PACKAGING:

in coils of 5 or 10 kg
as packing rings RC240E;
as pre-cut length


Other items in : Packing Graphite Packing

» Die-formed Graphite Ring
» Super-high Temperature & Pressure Valve Packing
» Graphite packing with carbon fiber corners
» Graphite packing with PTFE corners
» Graphite packing with PTFE impregnation
» Graphite Packing reinforced with Inconel wire
» Flexible Graphite Packing
